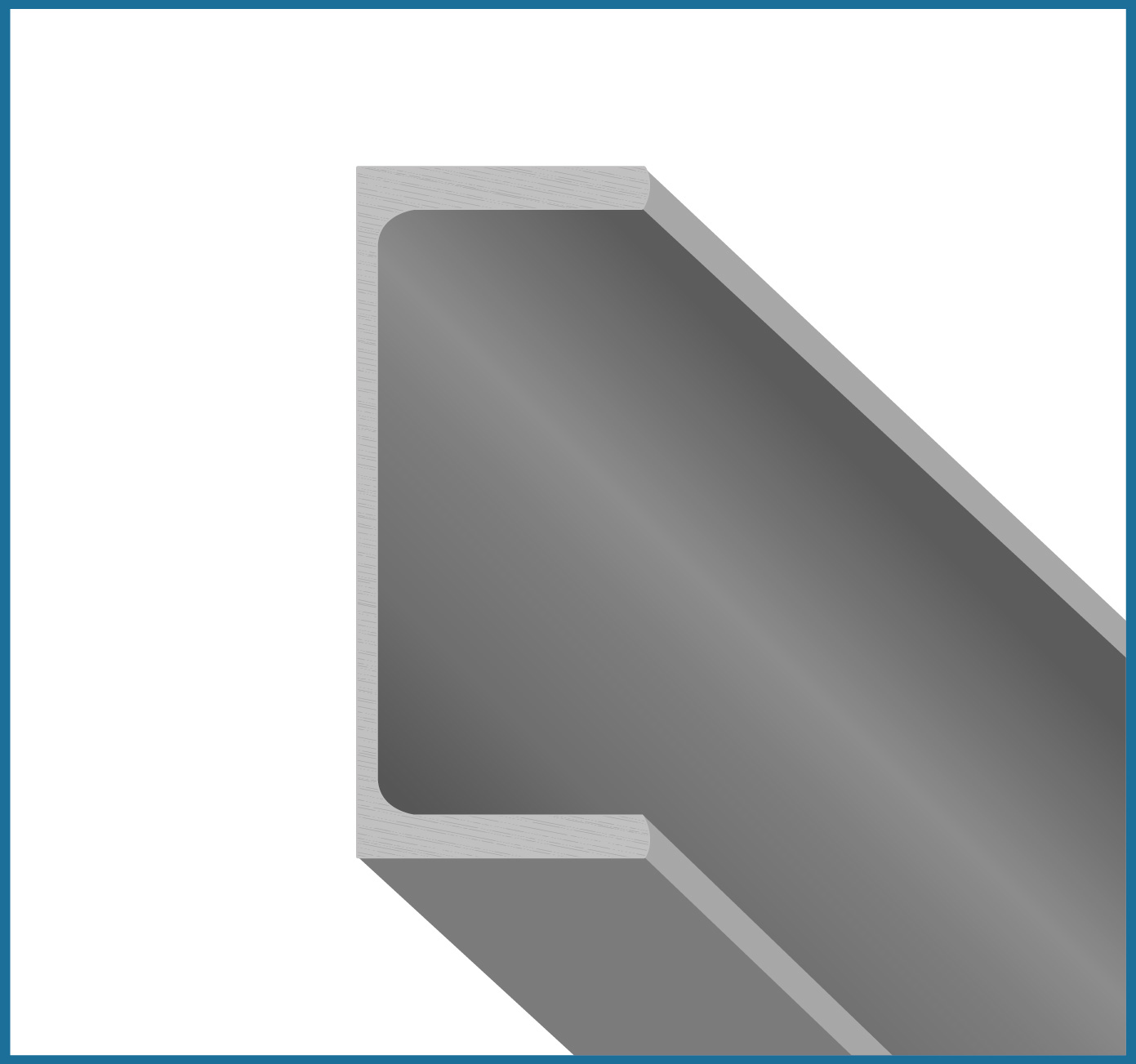

Rolled Beams UPE/UAP

EN 10365 / EN 10279

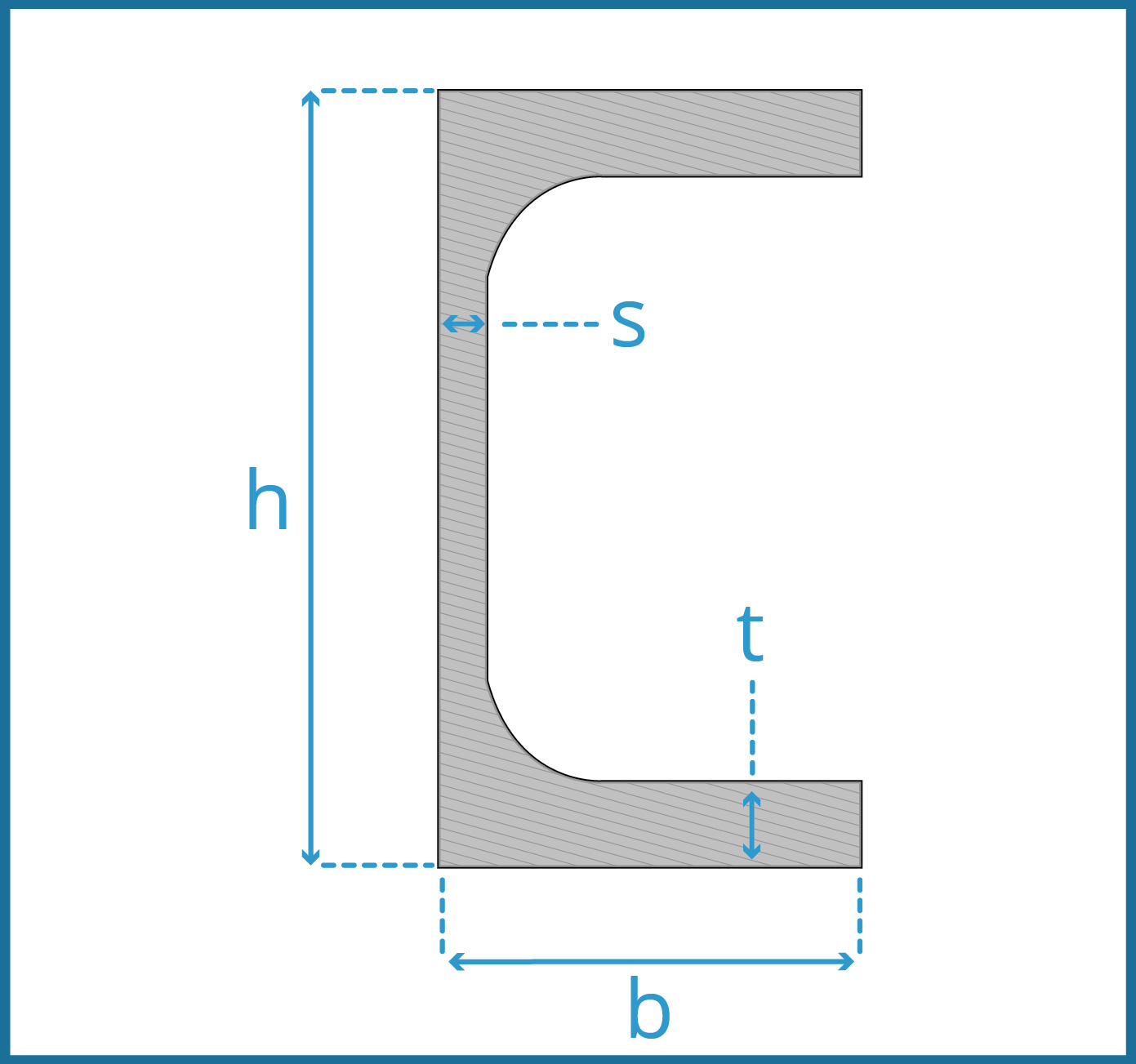

_hbstkg/m
UAP 150*15065710,2517,9
UPE 160*160705,59,517
UAP175*175707,510,7521,2
UPE 180*180755,510,519,7
UAP 200*20075811,524,1
UPE 2002008061122,8
UAP 220*22080812,528,5
UPE 220*220856,51226,6
UPE 240*24090712,530,2
UAP 250*25085913,534,4
UPE 270*270957,513,535,2
UPE 300*3001009,51544,4
UAP 300*3001009,51646

* on request


Process tolerances



h(mm)
65 < h ≤ 200200 < h ≤ 400
± 2,0± 3,0



b(mm)
50 < b ≤ 100
± 2,0



s(mm)
s ≤ 10
± 0,50



t(mm)
*plus tolerances are limited by the permissible exceeding of weight

t ≤ 1010 < t ≤ 15t > 15
- 0,5 / + *- 1,0 / + *- 1,5 / + *



Product lengths


6 m → 25 m (- 0 / + 100 mm)

*plus tolerances are limited by the permissible exceeding of weight

You could not find what you need?

Just ask for more information.
Maybe we could offer you more than on our website.

Julius Handels GmbH as ISO 9001, assures reliability, efficiency, respect for environment, safety and health of employees and fully respecting customer expectations, undertaking a continuous improvement of all processes.

All products are certified by international recognized authorities.
