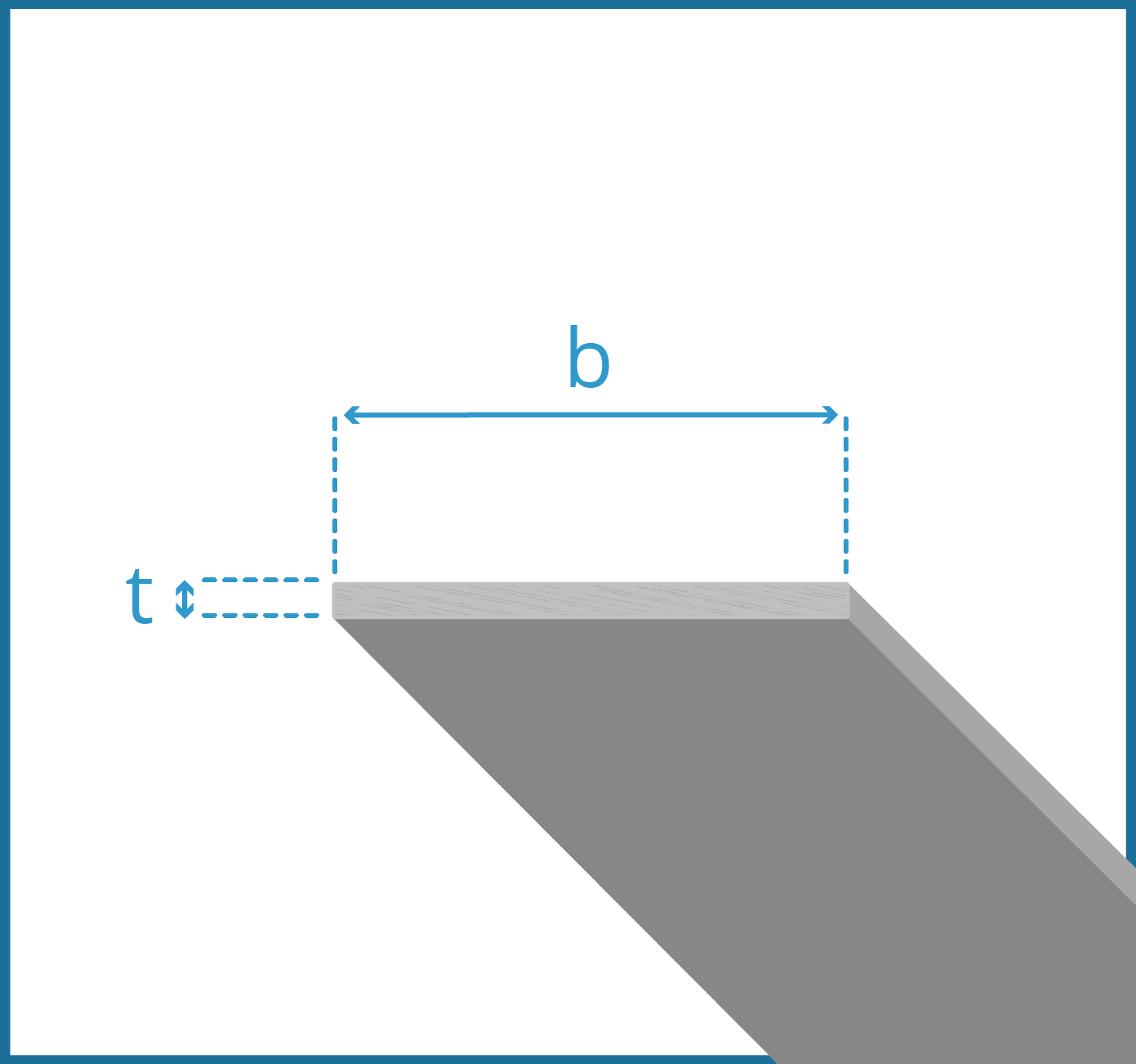

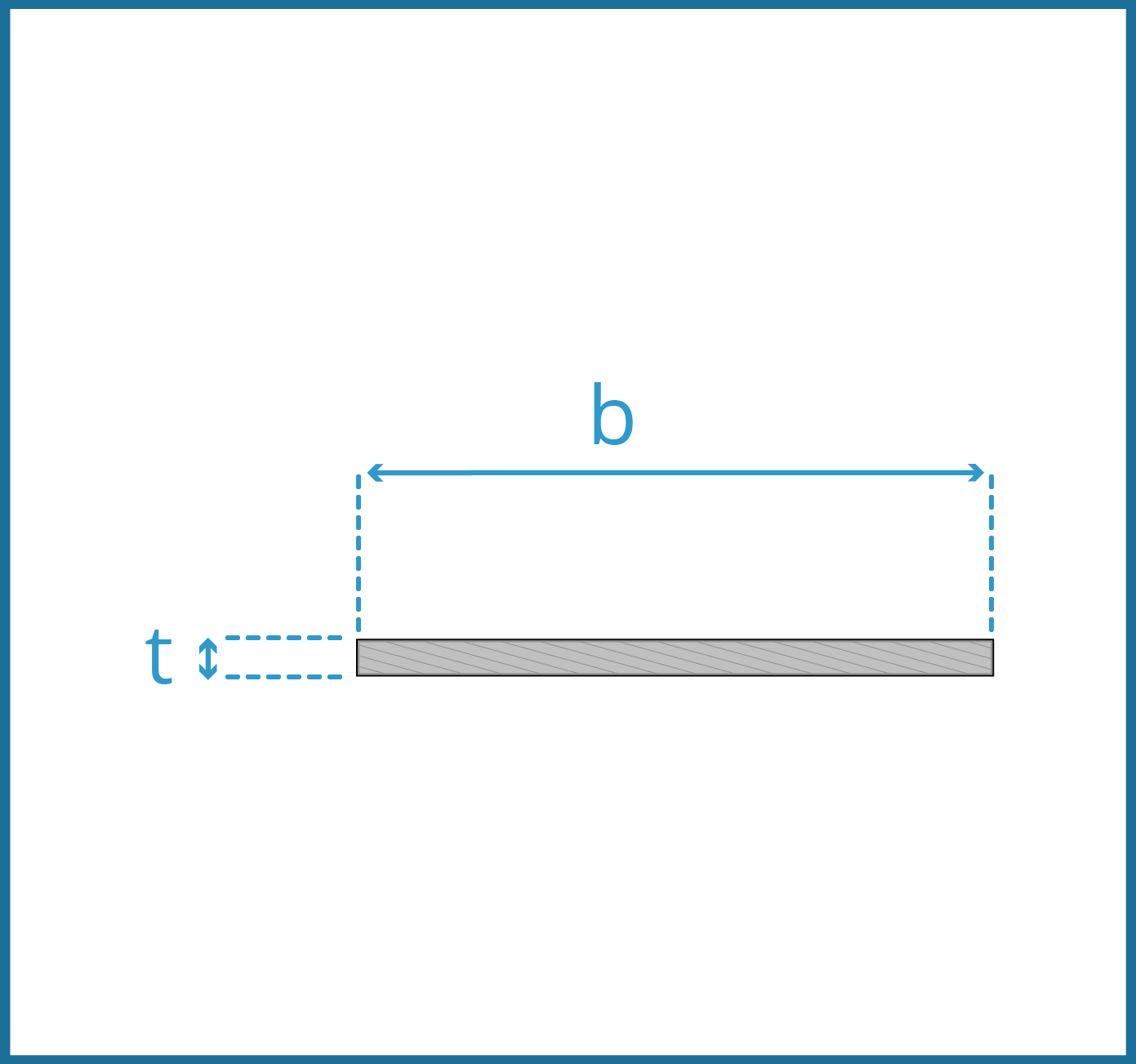

Universal flats

DIN 59200




t(mm)>
b(mm)56810121520253040
1606,287,541012,615,118,825,131,437,750,2
1706,678,0110,67613,3162026,733,44053,4
1807,078,4811,314,11721,228,335,342,456,5
1907,468,9511,914,917,922,429,837,344,759,7
2007,859,4212,615,718,823,631,439,347,162,8
220--13,817,320,725,934,543,251,869,1
230--14,418,121,727,136,145,154,272,2
240--15,118,822,628,337,747,156,575,4
250--15,719,623,629,439,349,158,978,5
260--16,320,424,530,640,85161,271,6
280--17,62226,433445565,987,9
300--18,818,818,818,818,818,818,818,8
320--20,125,130,131,750,262,875,4100,5
350--2227,53341,25568,782,4109,9
400--25,131,437,747,161,878,594,2125,6
kg/m>

Process tolerances



b(mm)
± 2 % b



t(mm)
4 ≤ t < 1010 ≤ t < 2020 ≤ t < 2525 ≤ t < 3030 ≤ t < 4040 ≤ t < 50
-0,4 / +0,6-0,4 / + 0,8-0,5 / +0,9-0,6 / + 1,0-0,7 / + 1,1-0,9 / + 1,1




Product lengths


6 m → 15 m (- 0 / + 200 mm ) / 25 m (on request)
