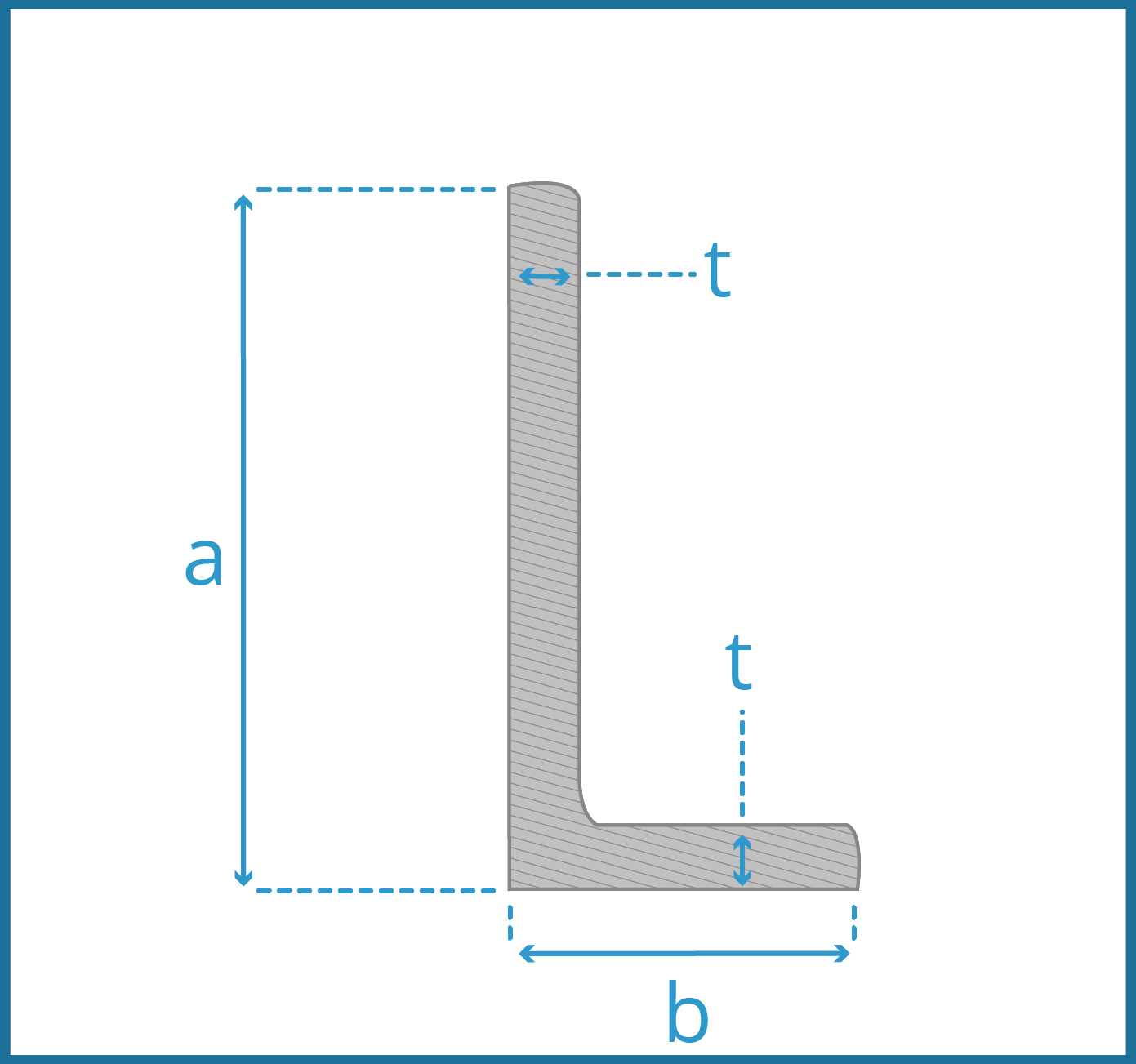

Unequal angles

EN 10056-1 / EN 10056-2




t(mm)>
axa(mm)345678910111214
30x201,121,461,78--------
40x201,361,772,18--------
40x25-1,932,37--------
45x30-2,252,77--------
50x30-2,412,963,51-------
50x40-2,723,353,96-------
60x30--3,363,994,59------
60x40--3,764,465,14------
70x50--4,515,46,21------
75x50--4,715,656,28------
75x55--4,955,846,8------
80x40---5,416,217,07-----
80x60---6,377,368,34-----
80x65---6,547,588,669,6110,7---
90x60---6,827,868,969,9611,1---
100x50---6,847,868,979,9611,1---
100x65---7,498,779,9411,112,213,4--
100x75----9,3210,611,81314,3--
120x60-----10,912,113,414,6--
120x80-----12,213,51516,317,8-
130x65-----11,813,114,615,917,3-
150x75------15,41718,620,2-
150x100-------1920,622,526,1
160x80-------18,219,921,624,8
kg/m>

Process tolerances



a,b(mm)
a ≤ 5050 < a ≤ 100100 < a ≤ 150150 < a ≤ 200
± 1,0± 2,0± 3,0± 4,0



t(mm)
t ≤ 55 < t ≤ 1010 < t ≤ 15t > 15
± 0,50± 0,75± 1,0± 1,20




Product lengths


6m → 15m (- 0 / + 100mm)
