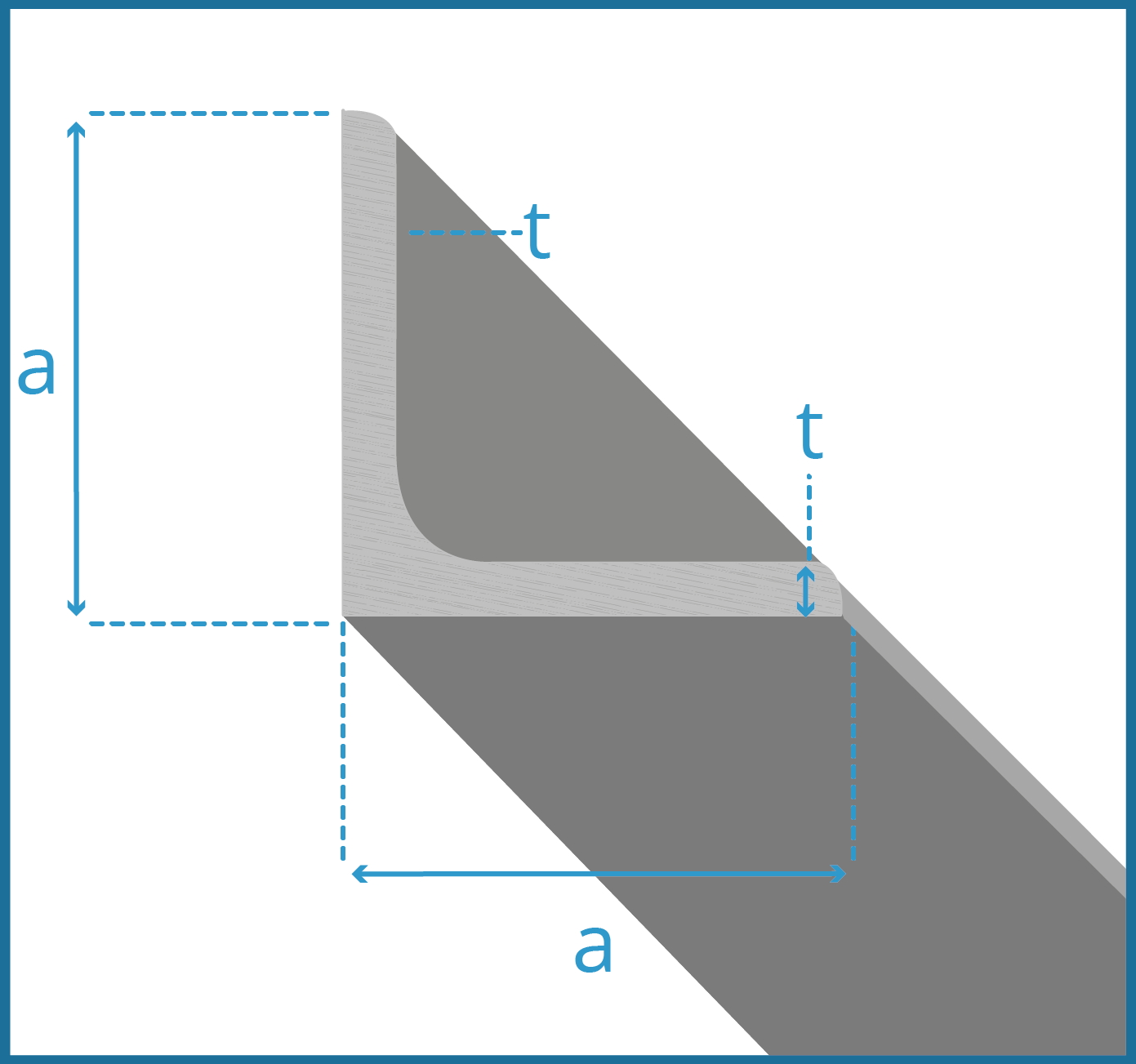

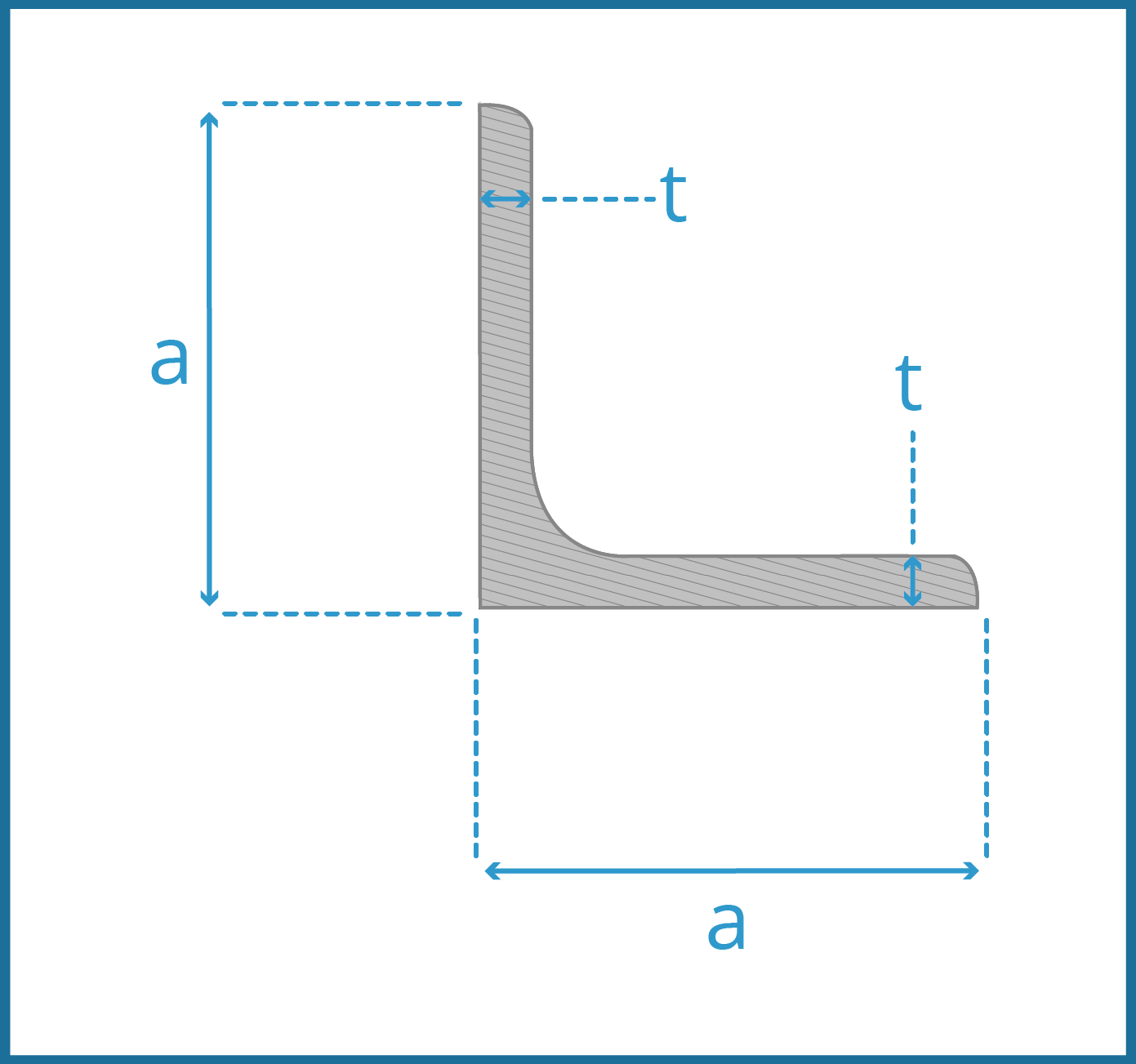

Sharp edged equal angles

DIN 1022




t(mm)>
axa(mm²)33,544,755,866,88,810,8
20x200,8711,13-------
25x251,111,281,44-------
30x301,341,551,762,042,16---
31x2x31x21,41,621,832,132,252,582,66---
35x351,581,832,072,412,552,923,01---
40x401,812,12,392,782,943,383,49---
41,2x41,2-2,172,462,873,043,493,64,04--
50x50--3,012,523,734,294,434,98--
51,2x51,2--3,092,63,824,44,545,1--
60x60----4,515,25,376,04--
61,2x61,2----4,615,315,486,17--
81,2x81,2------7,378,3110,612,9
101,2x101,2------9,2310,413,316,2
kg/m>

Process tolerances



a(mm)
a ≤ 5050 < a ≤ 100100 < a ≤ 150
± 1,0± 2,0± 3,0



t(mm)
t ≤ 55 < t ≤ 1010 < t ≤ 15
± 0,50± 0,75± 1,00




Product lengths


6m → 15m (- 100 / + 100mm)
