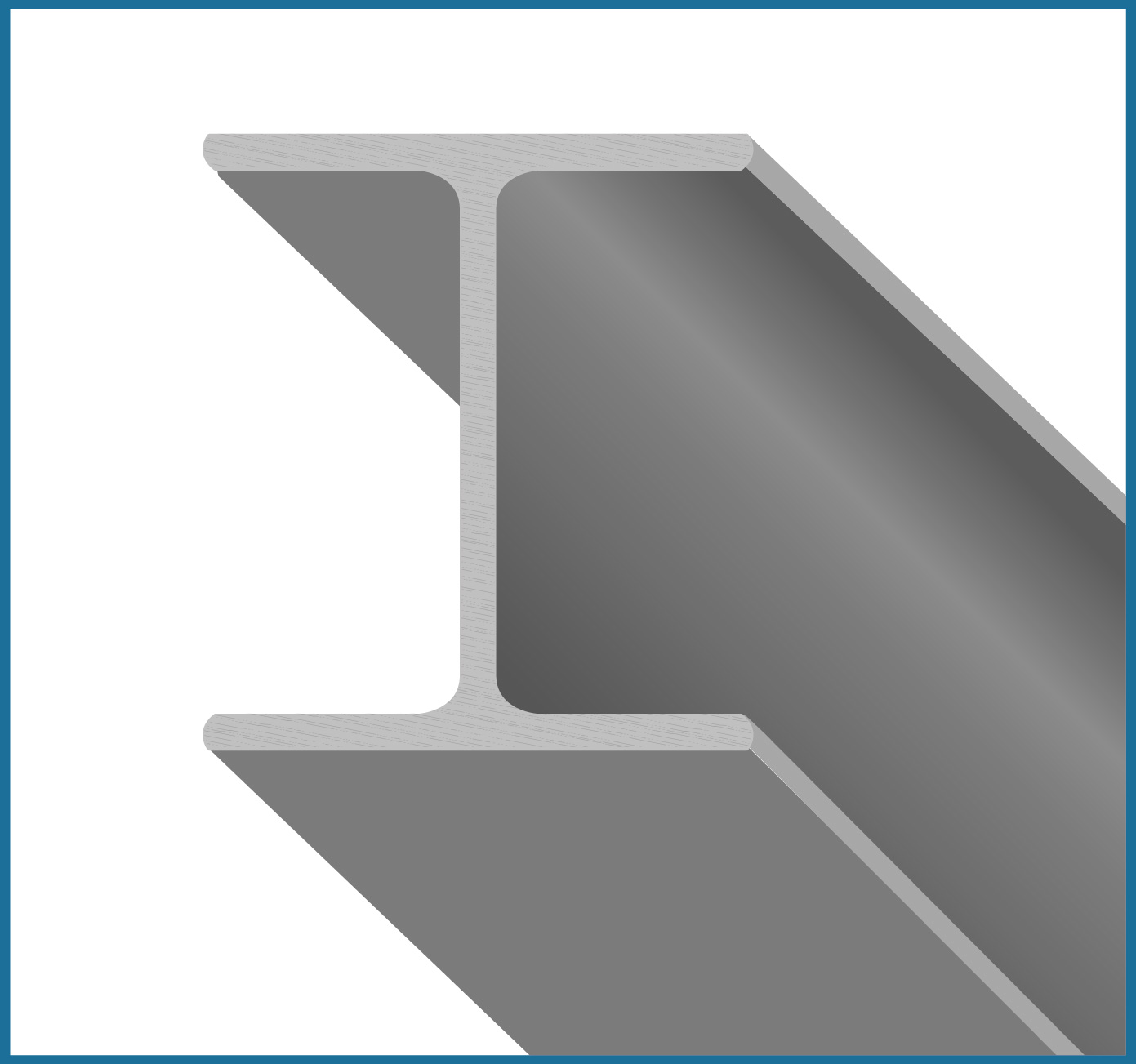

Rolled Beams HE

EN 10365 / EN 10034




_hbstkg/m
HEA 100961005816,7
HEB 10010010061020,4
HEM 100120106122041,8
HEA 1201141205819,9
HEB 1201201206,51126,7
HEM 12014012612,52152,1
HEA 1401331405,58,524,7
HEB 14014014071233,7
HEM 140160146132263,2
HEA 160*1521606930,4
HEB 160*16016081342,6
HEM 160*180166142376,2
HEA 180*14118069,535,5
HEB 180*18801808,51451,2
HEM 18020018614,52488,9
HEA 200*1902006,51042,3
HEB 200*20020091561,3
HEM 200*2202061525103

* on request

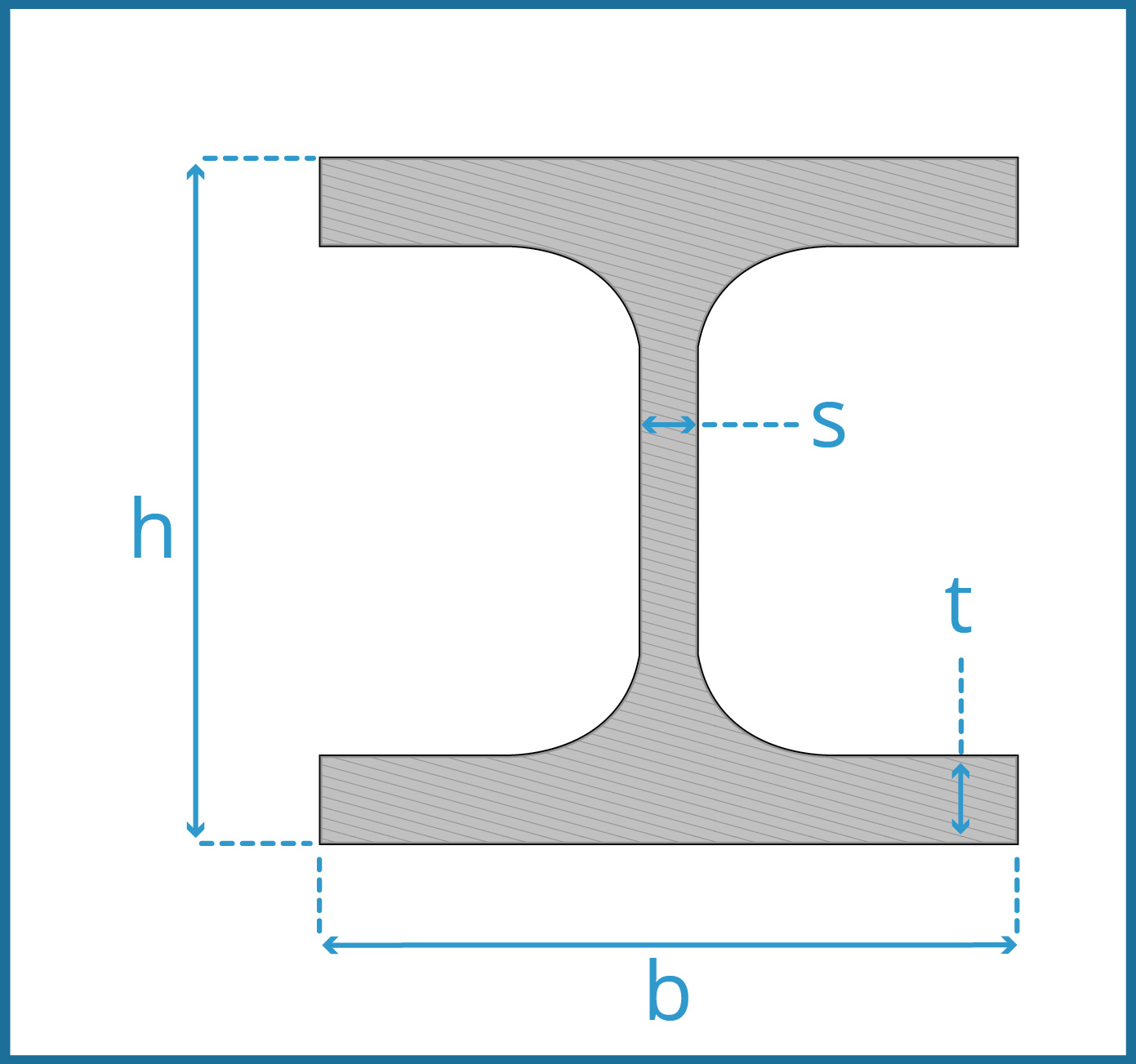

Process tolerances



h(mm)
h ≤ 200200 < h ≤ 400
+ 2,0 / - 2,0+ 3,0 / - 3,0



b(mm)
b ≤ t 7575 < b ≤ 100100 < b ≤ 125
+ 1,5 / - 1,5+ 2,0 / - 2,0+2,5 / - 2,5



s(mm)
s ≤ t 77 < s ≤ 10s > 10
+ 0,5 / - 1,0+ 0,7 / - 1,5+1,0 / - 2,0 + 0,5 / - 1,0+ 0,7 / - 1,5+1,0 / - 2,0



t(mm)
t ≤ 77 < 7 < t ≤ 1010 < t ≤ 20
+ 1,5 / - 0,5+ 2,0 / - 1,0+ 2,5 / - 1,5




Product lengths


IPN 80 > IPN 100: 6 m 15 m (- 0 / + 100 mm)


IPN 120 > IPN 300: 6 m 25 m (- 0 / + 100 mm)
