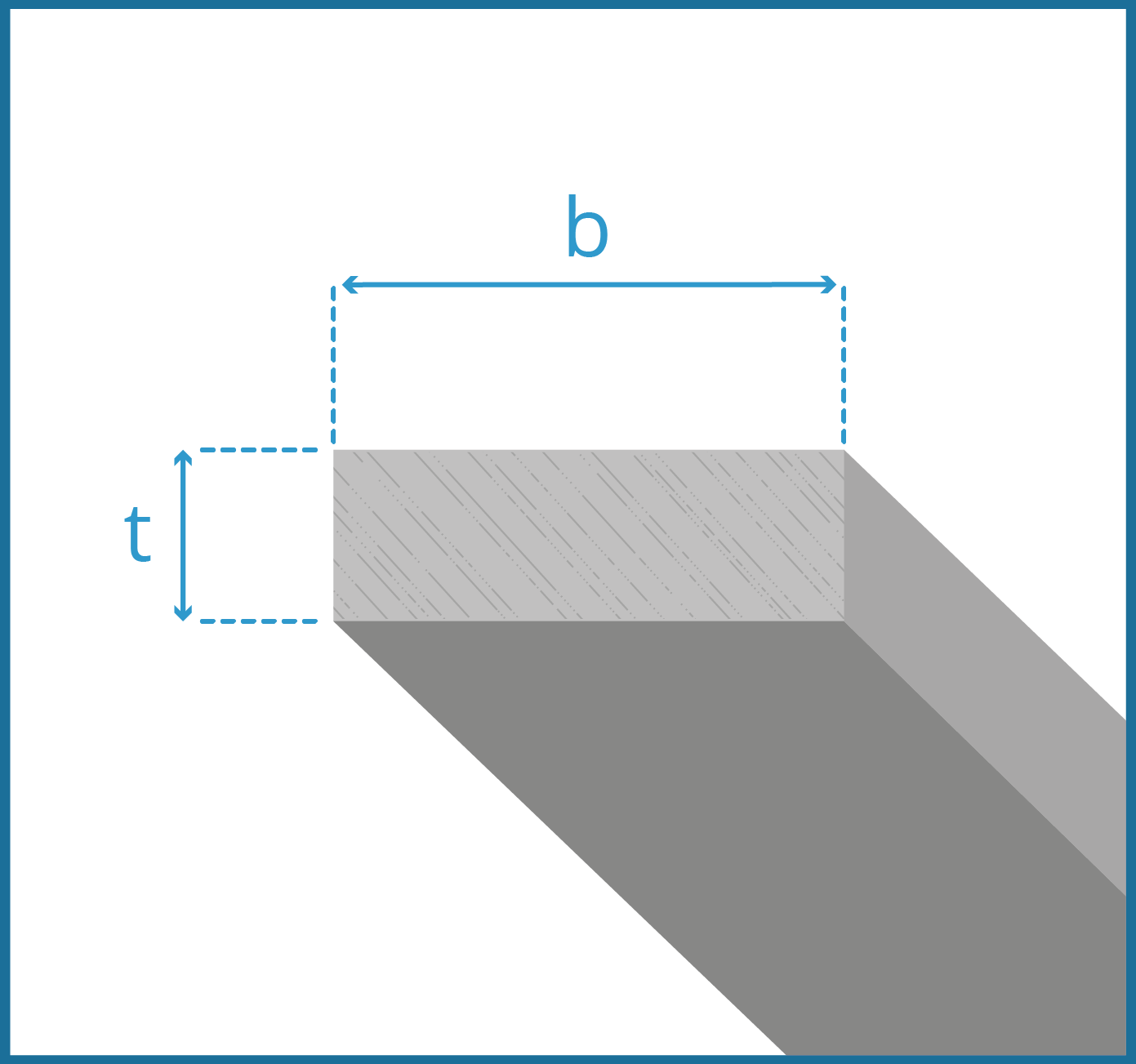

Flat Bar

EN 10058




t(mm)>
b(mm)345681012152025304050
100,240,310,390,47---------
120,280,380,470,57---------
140,330,440,550,66---------
150,350,470,590,710,94--------
160,380,50,630,751--------
200,470,630,790,941,261,571,882,36-----
250,590,790,981,181,571,962,362,94-----
300,710,941,181,411,882,362,833,534,71----
350,821,11,371,652,10,143,34,125,5----
400,941,261,571,882,512,143,774,716,287,859,42--
451,061,411,772,122,833,534,245,37,078,8310,6--
501,181,571,962,363,143,934,715,897,859,8111,815,7-
601,411,882,362,833,774,715,657,079,4211,814,118,8-
651,532,042,553,064,085,16,127,6510,212,815,320,4-
701,652,22,753,34,45,56,598,241113,716,522-
801,882,513,143,775,026,287,549,4212,615,718,825,1-
902,122,833,534,245,657,078,4810,614,117,721,228,3-
1002,363,143,934,716,287,859,4211,815,719,623,631,4-
110--4,325,186,918,6410,41317,321,625,934,5-
120--4,715,657,549,4211,314,118,823,628,337,7-
130--5,16,128,1610,212,215,320,425,530,640,8-
140--5,56,598,791113,216,52227,53344-
150--5,897,069,4211,814,117,723,629,435,347,1-
100,240,310,390,47---------
120,280,380,470,57---------
kg/m>

Process tolerances



b(mm)
10 ≤ b ≤ 4040 < b ≤ 8080 < b ≤100100 < b ≤ 120120 < b ≤ 150
± 0,75± 1,0± 1,5± 2,0± 2,5



t(mm)
t ≤ 2020 < t ≤ 4040 < t ≤ 80
± 0,5± 1,0± 1,5




Product lengths


6 m → 15 m (± 100 mm)
