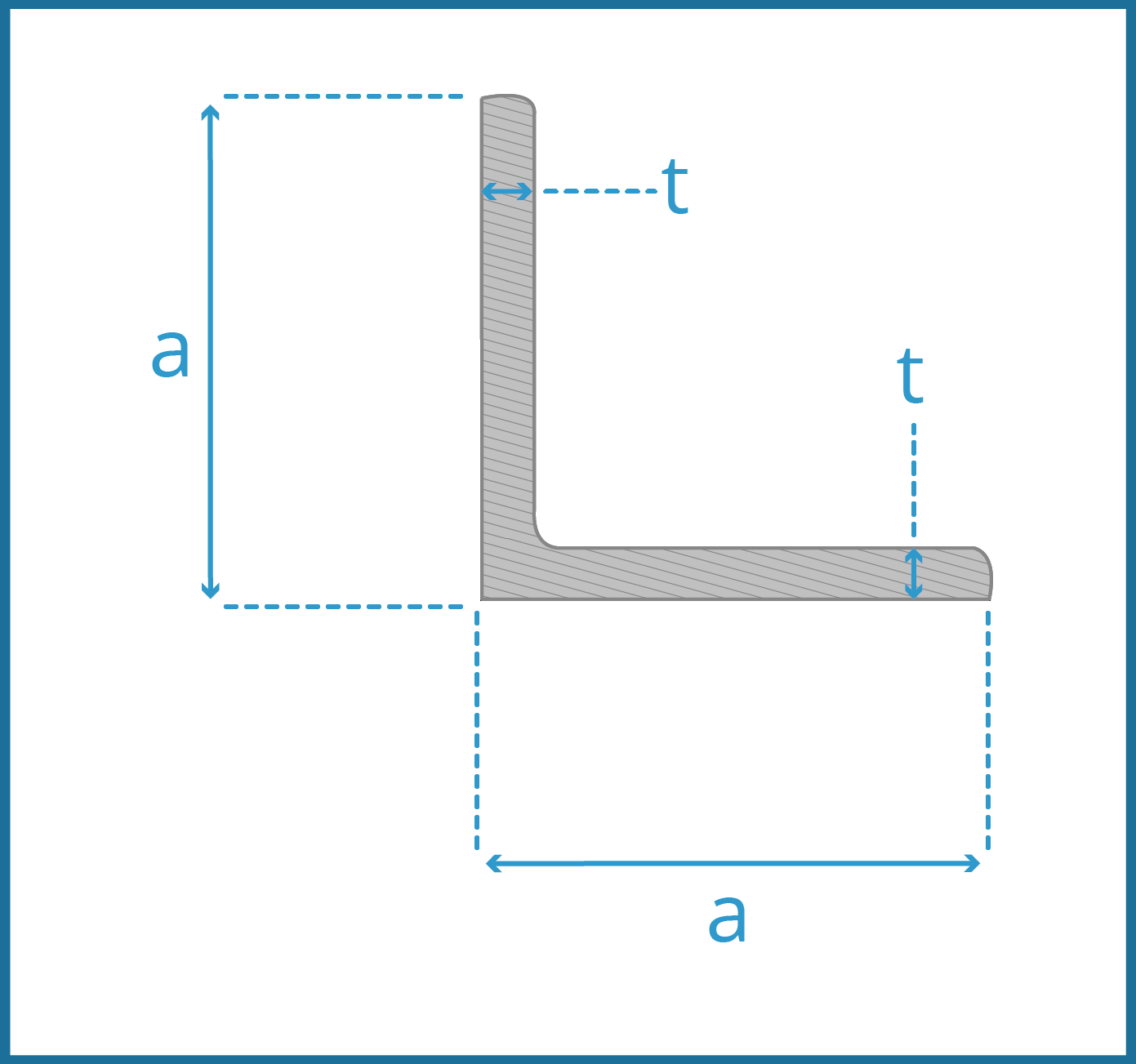

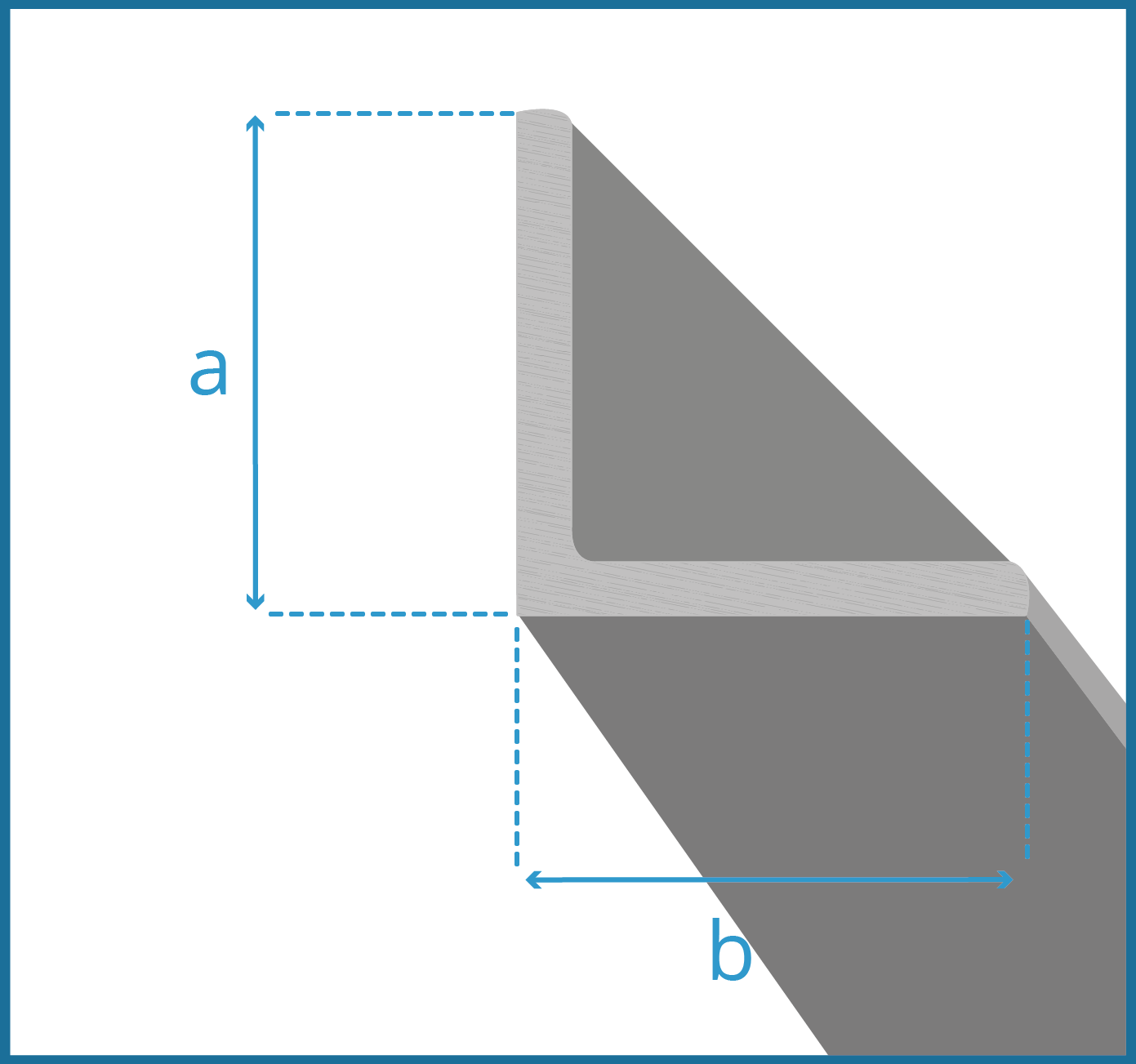

Equal angles

EN 10056-1 / EN 10056-2




t(mm)>
axa(mm²)2,733,545678910111213141516182024
15x150,580,64----------------
20x200,790,8811,14---------------
25x2511,120,1281,451,78--------------
30x301,211,361,551,782,182,57-------------
35x35-1,61,852,092,573,04-------------
40x40-1,842,12,422,973,52-------------
45x45---2,743,3844,565,15-----------
50x50---3,063,774,475,155,82-----------
60x60----4,575,426,267,097,98,69-------
70x70----5,326,387,388,369,3410,211,112,1-------
80x80-----7,348,489,6310,711,912,914-------
90x90-----8,319,6110,912,213,414,615,8-------
100x100-----9,210,712,213,51516,417,8-------
110x1110-----10,111,713,51516,618,219,7-------
120x120-------14,816,518,219,921,623,32526,6----
150x150*---------2325,227,329,531,633,835,940,1--
200x200*---------------48,554,359,971,1
kg/m>

Process tolerances



a(mm)
a ≤ 5050 < a ≤ 100100 < a ≤ 150150 < a ≤ 200
± 1,0± 2,0± 3,0± 4,0



t(mm)
t ≤ 55 < t ≤ 1010 < t ≤ 15t > 15
± 0,50± 0,75± 1,00± 1,20




Product lengths


6 m → 15 m (- 0 / + 100 mm) / 25 m * (on request)
